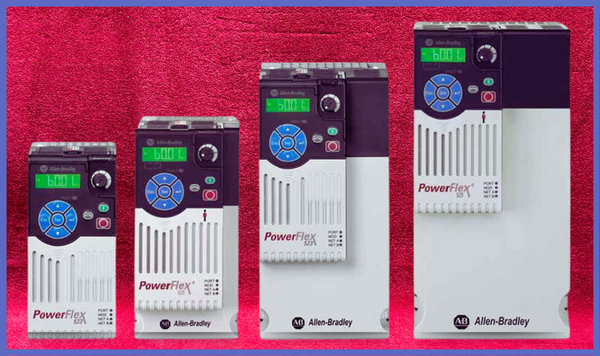

Comprehensive Specifications for PowerFlex 520-Series Variable Frequency Drives
The PowerFlex 520-Series Variable Frequency Drives blend adaptability with precision, offering a range of specifications for optimal performance in diverse applications, from conveyor belts to complex systems. With options for single or three-phase inputs and a variety of horsepower and kilowatt outputs, these drives are designed for energy-efficient operation, minimizing losses with precise wattage and amperage control. Their compact A to E frame sizes ensure easy integration and user-friendly operation, embodying a commitment to quality, versatility, and energy conservation in meeting modern industrial demands.
| PowerFlex 523 | PowerFlex 525 | Output Ratings | Input Voltage Range | Total Watts Loss | Frame Size | ||||
| Normal Duty | Heavy Duty | Output Current (A) | |||||||
| Catalog No. | Catalog No. | HP | kW | HP | kW | ||||
| 100...120V AC (-15%, +10%) – 1-Phase Input, 0...230V 3-Phase Output | |||||||||
| 25A-V1P6N104 | – | 0.25 | 0.2 | 0.25 | 0.2 | 1.6 | 85...132 | 20 | A |
| 25A-V2P5N104 | 25B-V2P5N104 | 0.5 | 0.4 | 0.5 | 0.4 | 2.5 | 85...132 | 27.0 | A |
| 25A-V4P8N104 | 25B-V4P8N104 | 1.0 | 0.75 | 1.0 | 0.75 | 4.8 | 85...132 | 53 | B |
| 25A-V6P0N104 | 25B-V6P0N104 | 1.5 | 1.1 | 1.5 | 1.1 | 6.0 | 85...132 | 53 | B |
| 200...240V AC (-15%, +10%) – 1-Phase Input, 0...230V 3-Phase Output | |||||||||
| 25A-A1P6N104 | – | 0.25 | 0.2 | 0.25 | 0.2 | 1.6 | 85...132 | 20 | A |
| 25A-A2P5N104 | 25B-A2P5N104 | 0.5 | 0.4 | 0.5 | 0.4 | 2.5 | 170...264 | 29 | A |
| 25A-A4P8N104 | 25B-A4P8N104 | 1 | 0.75 | 1 | 0.75 | 4.8 | 170...264 | 50 | A |
| 25A-A8P0N104 | 25B-A8P0N104 | 2 | 1.5 | 2 | 1.5 | 8 | 170...264 | 81 | B |
| 25A-A011N104 | 25B-A011N104 | 3 | 2.2 | 3 | 2.2 | 11 | 170...264 | 111 | B |
| 200...240V AC (-15%, +10%) – 1-Phase Input with EMC Filter, 0...230V 3-Phase Output | |||||||||
| 25A-A1P6N114 | – | 0.25 | 0.2 | 0.25 | 0.2 | 1.6 | 85...132 | 20 | A |
| 25A-A2P5N114 | 25B-A2P5N114 | 0.5 | 0.4 | 0.5 | 0.4 | 2.5 | 170...264 | 29 | A |
| 25A-A4P8N114 | 25B-A4P8N114 | 1 | 0.75 | 1 | 0.75 | 4.8 | 170...264 | 53 | A |
| 25A-A8P0N114 | 25B-A8P0N114 | 2 | 1.5 | 2 | 1.5 | 8 | 170...264 | 84 | B |
| 25A-A011N114 | 25B-A011N114 | 3 | 2.2 | 3 | 2.2 | 11 | 170...264 | 116 | B |
| 200...240V AC (-15%, +10%) – 3-Phase Input, 0...230V 3-Phase Output | |||||||||
| 25A-B1P6N104 | – | 0.25 | 0.2 | 0.25 | 0.2 | 1.6 | 85...132 | 20 | A |
| 25A-B2P5N104 | 25B-B2P5N104 | 0.5 | 0.4 | 0.5 | 0.4 | 2.5 | 170...264 | 29 | A |
| 25A-B5P0N104 | 25B-B5P0N104 | 1 | 0.75 | 1 | 0.75 | 5 | 170...264 | 50 | A |
| 25A-B8P0N104 | 25B-B8P0N104 | 2 | 1.5 | 2 | 1.5 | 8 | 170...264 | 79 | A |
| 25A-B011N104 | 25B-B011N104 | 3 | 2.2 | 3 | 2.2 | 11 | 170...264 | 107 | A |
| 25A-B017N104 | 25B-B017N104 | 5 | 4 | 5 | 4 | 17.5 | 170...264 | 148 | B |
| 25A-B024N104 | 25B-B024N104 | 7.5 | 5.5 | 7.5 | 5.5 | 24 | 170...264 | 259 | C |
| 25A-B032N104 | 25B-B032N104 | 10 | 7.5 | 10 | 7.5 | 32.2 | 170...264 | 323 | D |
| 25A-B048N104 | 25B-B048N104 | 15 | 11 | 10 | 7.5 | 48.3 | 170...264 | 584 | E |
| 25A-B062N104 | 25B-B062N104 | 20 | 15 | 15 | 11 | 62.1 | 170...264 | 708 | E |
| 380...480V AC (-15%, +10%) – 3-Phase Input, 0...460V 3-Phase Output(1) | |||||||||
| 25A-D1P4N104 | 25B-D1P4N104 | 0.5 | 0.4 | 0.5 | 0.4 | 1.4 | 323...528 | 27 | A |
| 25A-D2P3N104 | 25B-D2P3N104 | 1 | 0.75 | 1 | 0.75 | 2.3 | 323...528 | 37 | A |
| 25A-D4P0N104 | 25B-D4P0N104 | 2 | 1.5 | 2 | 1.5 | 4 | 323...528 | 62 | A |
| 25A-D6P0N104 | 25B-D6P0N104 | 3 | 2.2 | 3 | 2.2 | 6 | 323...528 | 86 | A |
| 25A-D010N104 | 25B-D010N104 | 5 | 4 | 5 | 4 | 10.5 | 323...528 | 129 | B |
| 25A-D013N104 | 25B-D013N104 | 7.5 | 5.5 | 7.5 | 5.5 | 13 | 323...528 | 170 | C |
| 25A-D017N104 | 25B-D017N104 | 10 | 7.5 | 10 | 7.5 | 17 | 323...528 | 221 | C |
| 25A-D024N104 | 25B-D024N104 | 15 | 11 | 15 | 11 | 24 | 323...528 | 303 | D |
| 25A-D030N104 | 25B-D030N104 | 20 | 15 | 15 | 11 | 30 | 323...528 | 387 | D |
| 380...480V AC (-15%, +10%) – 3-Phase Input with EMC Filter, 0...460V 3-Phase Output | |||||||||
| 25A-D1P4N114 | 25B-D1P4N114 | 0.5 | 0.4 | 0.5 | 0.4 | 1.4 | 323...528 | 27 | A |
| 25A-D2P3N114 | 25B-D2P3N114 | 1 | 0.75 | 1 | 0.75 | 2.3 | 323...528 | 37 | A |
| 25A-D4P0N114 | 25B-D4P0N114 | 2 | 1.5 | 2 | 1.5 | 4 | 323...528 | 63 | A |
| 25A-D6P0N114 | 25B-D6P0N114 | 3 | 2.2 | 3 | 2.2 | 6 | 323...528 | 88 | A |
| 25A-D010N114 | 25B-D010N114 | 5 | 4 | 5 | 4 | 10.5 | 323...528 | 133 | B |
| 25A-D013N114 | 25B-D013N114 | 7.5 | 5.5 | 7.5 | 5.5 | 13 | 323...528 | 175 | C |
| 25A-D017N114 | 25B-D017N114 | 10 | 7.5 | 10 | 7.5 | 17 | 323...528 | 230 | C |
| 25A-D024N114 | 25B-D024N114 | 15 | 11 | 15 | 11 | 24 | 323...528 | 313 | D |
| 25A-D030N114 | 25B-D030N114 | 20 | 15 | 15 | 11 | 30 | 323...528 | 402 | D |
| 25A-D037N114 | 25B-D037N114 | 25 | 18.5 | 20 | 15 | 37 | 323...528 | 602 | E |
| 25A-D043N114 | 25B-D043N114 | 30 | 22 | 25 | 18.5 | 43 | 323...528 | 697 | E |
| 525...600V AC (-15%, +10%) – 3-Phase Input, 0...575V 3-Phase Output | |||||||||
| 25A-E0P9N104 | 25B-E0P9N104 | 0.5 | 0.4 | 0.5 | 0.4 | 0.9 | 446...660 | 22 | A |
| 25A-E1P7N104 | 25B-E1P7N104 | 1 | 0.75 | 1 | 0.75 | 1.7 | 446...660 | 32 | A |
| 25A-E3P0N104 | 25B-E3P0N104 | 2 | 1.5 | 2 | 1.5 | 3 | 446...660 | 50 | A |
| 25A-E4P2N104 | 25B-E4P2N104 | 3 | 2.2 | 3 | 2.2 | 4.2 | 446...660 | 65 | A |
| 25A-E6P6N104 | 25B-E6P6N104 | 5 | 4 | 5 | 4 | 6.6 | 446...660 | 95 | B |
| 25A-E9P9N104 | 25B-E9P9N104 | 7.5 | 5.5 | 7.5 | 5.5 | 9.9 | 446...660 | 138 | C |
| 25A-E012N104 | 25B-E012N104 | 10 | 7.5 | 10 | 7.5 | 12 | 446...660 | 164 | C |
| 25A-E019N104 | 25B-E019N104 | 15 | 11 | 15 | 11 | 19 | 446...660 | 290 | D |
| 25A-E022N104 | 25B-E022N104 | 20 | 15 | 15 | 11 | 22 | 446...660 | 336 | D |
| 25A-E027N104 | 25B-E027N104 | 25 | 18.5 | 20 | 15 | 27 | 446...660 | 466 | E |
| 25A-E032N104 | 25B-E032N104 | 30 | 22 | 25 | 18.5 | 32 | 446...660 | 562 | E |
| (1) A non-filtered drive is not available for 380...480V AC 25 HP (18.5 kW) and 30 HP (22.0 kW) ratings. Filtered drives are available; however, you must verify that the application supports them. | |||||||||
