How to Design Automation Systems That Are Easier to Troubleshoot

Most automation downtime is not caused by complex failures. It is caused by systems that were difficult to understand the moment something went wrong.

A fault appears, but the alarm message is vague. The wiring is undocumented. The program logic is technically correct, but nobody remembers how it was intended to work. Troubleshooting turns into guesswork, even for experienced technicians.

Automation systems that are easy to troubleshoot do not happen by accident. They are designed intentionally, with clarity, consistency, and future maintenance in mind.

This guide explains how to design automation systems that fail more gracefully, communicate problems clearly, and help teams restore production faster when issues arise.

Design for the people who will troubleshoot the system

One of the most common mistakes in automation design is optimizing only for functionality and performance.

A system can run perfectly under normal conditions and still be a nightmare to troubleshoot if the design assumes the original programmer or integrator will always be available.

Good troubleshooting design starts with a simple assumption: someone unfamiliar with the system will eventually need to diagnose it under pressure.

When that assumption guides design decisions, clarity becomes a requirement rather than an afterthought.

Use consistent naming and structure everywhere

Inconsistent naming is one of the fastest ways to slow down troubleshooting.

Tag names, alarm descriptions, I O labels, and HMI screen titles should follow the same logic and terminology across the entire system.

When names are predictable, technicians spend less time decoding meaning and more time solving the actual problem.

At a minimum, consistency should apply to:

• I O tags and device names
• Program routines and function blocks
• Alarm and fault messages
• HMI navigation and screen titles

A technician should be able to see a fault message and immediately know where to look in the program and in the panel.

Make alarms descriptive, actionable, and specific

Alarms are one of the most valuable troubleshooting tools when they are designed correctly.

Generic messages such as “Drive Fault” or “Sensor Error” do little to help during downtime. They confirm that something is wrong without providing direction.

Well designed alarms answer three questions:

• What failed
• Where it failed
• What should be checked first

Even a short note such as “Check upstream photoeye alignment” can dramatically reduce troubleshooting time.

Design programs with logical segmentation and visibility

Flat, monolithic programs are difficult to troubleshoot, especially under time pressure.

Breaking logic into clearly defined routines, states, or function blocks makes it easier to isolate problems and understand intent.

Each section of logic should have a clear purpose and minimal side effects. When a fault occurs, technicians should be able to narrow the issue to a specific area of code without tracing the entire program.

Good segmentation also makes online monitoring more effective, allowing teams to see exactly where logic stops or behaves unexpectedly.

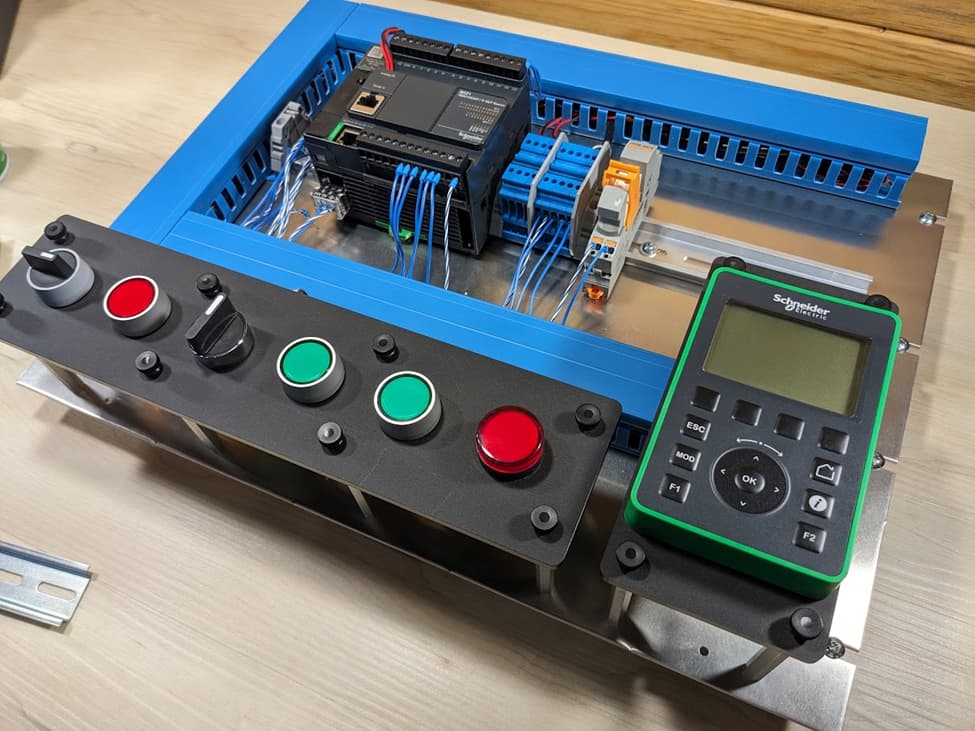

Label wiring and panels as if documentation will be missing

Documentation is valuable, but it is not always available when you need it most.

Panels should be labeled in a way that allows someone to identify devices, power sources, and signal paths without opening a manual.

Clear panel labeling should include:

• Device tags that match the PLC program
• Power source identification and voltage levels
• Network ports and switch assignments
• Terminal block references for field wiring

When physical labels match digital names, troubleshooting moves faster and errors are reduced.

Expose system state clearly on the HMI

HMIs are often treated as operator interfaces only, but they are also powerful diagnostic tools.

A well designed HMI shows more than alarms. It shows system state.

Troubleshooting screens should allow maintenance teams to quickly see:

• Which conditions are preventing operation
• What interlocks are active
• Which devices are offline or faulted
• What the system is waiting for

This visibility reduces unnecessary resets and prevents technicians from chasing symptoms instead of root causes.

Plan for safe testing and manual control

Troubleshooting often requires testing components individually.

Systems that allow safe, intentional manual control make diagnostics faster and safer. Systems that hide or restrict testing create workarounds that introduce risk.

Manual modes, test screens, and maintenance overrides should be clearly defined, documented, and protected. Their purpose is controlled troubleshooting, not bypassing safety or process integrity.

Capture fault context before it disappears

Many automation issues are intermittent. Once the fault clears, valuable information is lost.

Design systems to retain fault history, timestamps, and relevant process values when failures occur. Even basic logging can turn a recurring mystery into a solvable problem.

Context matters as much as the fault itself.

Think about troubleshooting during design reviews

Troubleshootability should be part of design reviews, not something discovered after commissioning.

Ask questions such as:

• How would someone unfamiliar diagnose this failure
• Is the fault location obvious from alarms and tags
• Can we isolate this issue without stopping the entire system

Design choices that slightly increase upfront effort often save hours or days of downtime later.

Systems that are easy to troubleshoot fail better

All automation systems will eventually fail. The difference is how quickly and confidently teams can recover.

Systems designed with troubleshooting in mind reduce downtime, lower maintenance stress, and improve long term reliability.
